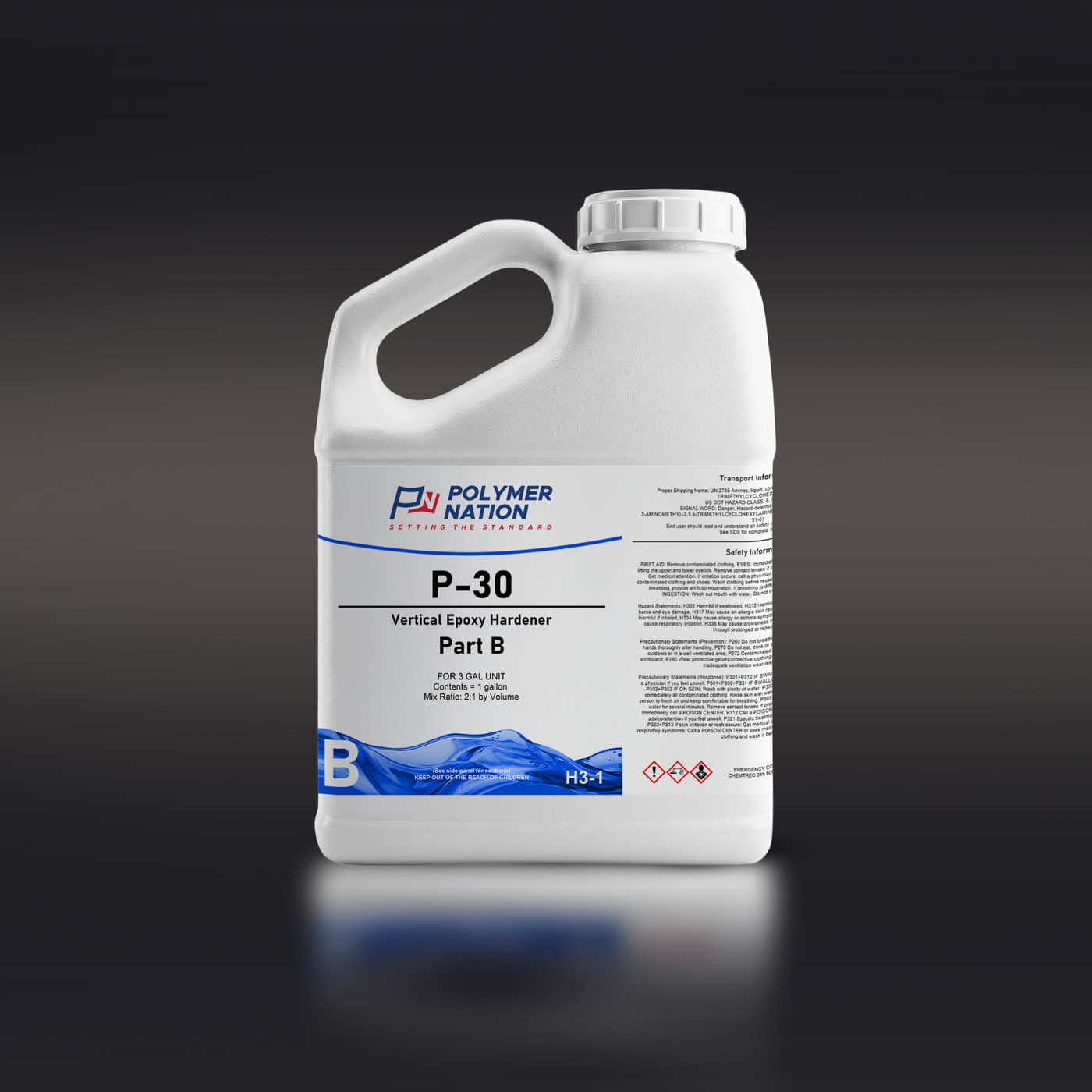

P-30 Epoxy Grouting/Primer
P-30 consist of a high viscosity, nonylphenol-free, epoxy resin and a thickened, cycloaliphatic amine reactant.
Overview
P-30 consist of a high viscosity, nonylphenol-free, epoxy resin and a thickened, cycloaliphatic amine reactant. This combination achieves a rheology that makes it easy to spread but also fast to return to its resting state, especially in vertical applications.
Uses and Benefits
P-30 is most often used to fill porous surfaces such as trowel applied epoxy flooring and coving and as a concrete block filler. It can also be used as a troweling paste to assist in the application of aggregate-filled mortar on coving and vertical substrates.
Limitations
P-30 is designed to be applied between 12-20 mils. It is not intended to be used as a finish coat as it will amber. Cooler temperatures will increase cure times. Warmer temperatures will decrease working and cure times. Verify that substrate temperature is above 5 degrees of dewpoint during application and cure of material to avoid a potential amine blush.
Preparation
The preparation method for each project is determined by a full understanding of the substrate to be coated, the chemistry of the coating system being used, the coating system thickness, and numerous other factors. The coating installer should fully read and understand ICRI Guideline NO. 310.2R-2013 and OSHA 29 CFR 1926.1153 before starting preparatory work. The aim, of preparing a substrate for coating applications, is to roughen the surface, remove weak layers, contaminants, dirt, debris and present a solid, clean, dry substrate for the primer. If unsure as to the level of preparation needed contact Polymer Nation at Lab@polymerNation.com.
Key Benefits
- Stain Resistant
- Durable
- Low Odor/VOCs
Technical Data
At a glance — the specs most teams decide on.
- Shore Hardness @ 24 Hours
- 65Shore D
- Shore Hardness @ 7 Days
- 75-80Shore D
- Gloss @ 60° Angle
- 60-70Applying material close to dew point will decrease gloss and may result in an amine blush
- VOCs of Mixed Material
- <50 g/lEPA Method 24
- Color Scale per ASTM D1500
- 0.5-1.0Clear to slightly amber before filler is introduced
- Solids by Volume (Mixed)
- 100%
- Working Time
- 30-40 minutes
- Gel Time
- 45 min.Warmer temperatures will decrease gel time and lower temperatures will increase gel time
- Dry to Touch
- 4-8 hoursWarmer temperatures will decrease gel time and lower temperatures will increase gel time
- Through Dry
- 8-12 hoursWarmer temperatures will decrease gel time and lower temperatures will increase gel time
- Dry to Walk
- 12 HoursWarmer temperatures will decrease gel time and lower temperatures will increase gel time
- Dry to Lightly Use
- 18-24 hoursWarmer temperatures will decrease gel time and lower temperatures will increase gel time
- Full Cure
- 7 daysWarmer temperatures will decrease gel time and lower temperatures will increase gel time
- Number of Components
- 21-2 gallon container of Part A and 1-1 gallon container of Part B
- Mix Ratio (Liquids by Volume)
- 2:1It is always preferred to mix the entire kit, whenever possible, to avoid off-ratio mixtures
- Mixed Viscosity @ 25°C/77°F
- 4500 +/- 500 cPWarmer temperatures will reduce viscosity and lower temperatures will increase viscosity
- Ideal Application Temperature
- 60-85°FVerify that substrate temperature is above 5 degrees of dewpoint during application and cure of material to avoid a potential amine blush
- Application Thickness
- 12-20 mils
- Coverage Per Mix
- 80 – 135 sq.ft./gal.
- Odor
- SubtleMeasuring odor offensiveness is difficult so experience with chemicals has been consulted here
- Storage Temperature
- 60-80 degrees FStore material between 60-90 degrees F in a protected dry location.
Colors & Packaging
Colors
Clear
Packaging
- Available sizes
- 3 Gallons
- Note
- Material can be supplied in larger packaging upon request and with minimum quantities
Where It's Used
Markets
Used in Systems
Mixing & Application
It is always recommended to mix the entire kit, whenever possible, to avoid off-ratio mixtures. Mix ratio is 2 parts P-30 Part A to 1 part P-30 Part B. Combine all of part A and B into a single container, large enough to except the entire kit. Mix using a 350 RPM mixer using an appropriate mixing blade for 2 - 3 minutes making sure to not introduce excessive air into the material.
Disposal: Dispose of material, containers, solvents, etc., per Federal, State and local guideline, rules and laws.
