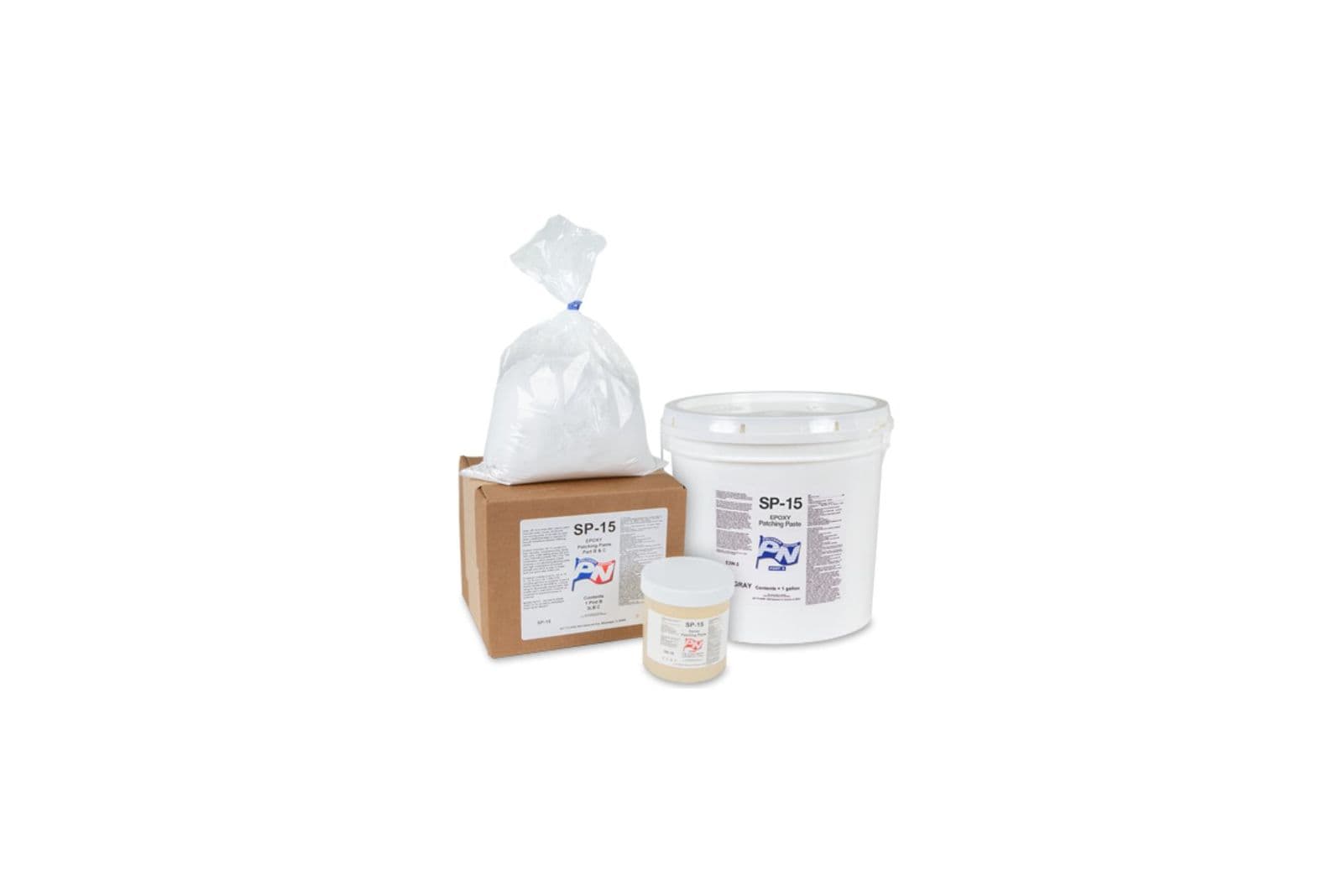

SP-15 Epoxy Patching Paste
SP-15 consist of a high viscosity, nonylphenol-free, epoxy resin, a thickened, cycloaliphatic amine reactant and a free-silica, powder (PN 1170).
Overview
SP-15 consist of a high viscosity, nonylphenol-free, epoxy resin, a thickened, cycloaliphatic amine reactant and a free-silica, powder (PN 1170). This combination, when properly mixed, achieves a non-shrinking patching paste with high compressive and tensile strength and which is easy to shape, sand and grind after initial cure.
Uses and Benefits
SP-15 is most often used to patch concrete holes, cracks, divots and non-moving joints. It can also be used when a feathered edge is required for smooth transitions between differing planes. SP-15 kit will cover approximately 3.2 sq. ft. at 1/4" or 150 LF of 1/4" X 1/4" joint.
Limitations
SP-15 is designed to be applied at temperatures between 60-90°F. Cooler temperatures will increase cure times. Warmer temperatures will decrease working and cure times. Verify that substrate temperature is above 5 degrees of dewpoint during application and cure of material to avoid a potential amine blush.
Preparation
The preparation method for each project is determined by a full understanding of the substrate to be coated, the chemistry of the coating system being used, the coating system thickness, and numerous other factors. The coating installer should fully read and understand ICRI Guideline NO. 310.2R-2013 and OSHA 29 CFR 1926.1153 before starting preparatory work. The aim, of preparing a substrate for coating applications, is to roughen the surface, remove weak layers, contaminants, dirt, debris and present a solid, clean, dry substrate for the primer. If unsure as to the level of preparation needed contact Polymer Nation at Lab@polymerNation.com.
Key Benefits
- Low Odor/VOCs
- Quick Cure
Technical Data
At a glance — the specs most teams decide on.
- Shore Hardness @ 24 Hours
- 65Shore D
- Shore Hardness @ 7 Days
- 80Shore D
- Gloss @ 60° Angle
- 30-40Applying material close to dew point will decrease gloss and may result in an amine blush
- VOCs of Mixed Material
- <50 g/lEPA Method 24
- Color Scale per ASTM D1500
- 0.5-1.0Clear to slightly amber before filler is introduced
- Solids by Volume (Mixed)
- 100%
- Working Time
- 10-15 minutes
- Gel Time
- 20 min.Warmer temperatures will decrease gel time and lower temperatures will increase gel time
- Dry to Touch
- 1-2 hoursWarmer temperatures will reduce time and colder temperatures will increase time
- Through Dry
- 2-4 hoursWarmer temperatures will reduce time and colder temperatures will increase time
- Dry to Walk
- 4.5 HoursWarmer temperatures will reduce time and colder temperatures will increase time
- Dry to Lightly Use
- 6-8 hoursWarmer temperatures will reduce time and colder temperatures will increase time
- Full Cure
- 7 daysWarmer temperatures will reduce time and colder temperatures will increase time
- Number of Components
- 3Part A - 1 quart, Part B - 1 pint, Part C - 3 lbs. Aggregate
- Mix Ratio (Liquids by Volume)
- 2:1 plus Part CIt is always preferred to mix the entire kit, whenever possible, to avoid off-ratio mixtures
- Mixed Viscosity @ 25°C/77°F
- 3500 cP 25°C/77°FLiquids only
- Ideal Application Temperature
- 60-90°FVerify that substrate temperature is above 5 degrees of dewpoint during application and cure of material to avoid a potential amine blush
- Coverage Per Mix
- SP-15 kit will cover approximately 3.2 sq. ft. at 1/4" or 150 LF of 1/4" X 1/4" joint.
- Odor
- Subtle
- Storage Temperature
- 60-80 degrees FStore material between 60-90 degrees F in a protected dry location.
- Number of Mixes per Kit
- 1A 1 mix kit consists of 32 FL. OZ. A, 16 FL. OZ. B and 1-3 LB. bag of C.
Colors & Packaging
Colors
Clear or Color Packs
Packaging
- Available sizes
- 0.5 Gallon
Where It's Used
Markets
Used in Systems
Mixing & Application
It is always recommended to mix the entire kit, whenever possible, to avoid off-ratio mixtures. A mixture consists of 1 quart SP-15 Part A, 1 pint SP-15 Part B and 3 LB. of Part C (PN 1170). Combine part A and B into a single container, large enough to accept the entire kit (1 mix equals .5 gallons when Part C is added). Premix liquids at 350 RPM for 1 minute using an appropriate mixing blade, and slowly add Part C under agitation until desired paste consistency is achieved.
Disposal: Dispose of material, containers, solvents, etc., per Federal, State and local guidelines, rules and laws.
