F-52 TD
F-52 TD Urethane Concrete Trowel Overlay
About the product
Product Overview
F-52 TD is a revolutionary formulation that allows longer working time with a snap-cure. It combines our urethane resin (U2) and Iso (Iso3) with our proprietary blend of portland cement, lime and fillers (PN 1352 T). It has been formulated to provide the highest degree of impact and thermal shock resistance of any urethane concrete on the market. It’s low odor and easy application make it perfect for industrial applications.
Uses
F-52 TD is most often used as a self-priming, concrete flooring overlay. It is used to achieve 1/4″-3/8″ thick overlay in one pass and can be trowel or rake applied. Because it is a mortar, it is the ideal material for sloping floors and creating ramps and transitions. It can also be applied to green concrete.
Preparation
The coating installer should fully read and understand ICRI310.2R-2013 and OSHA 29 CFR 1926.1153 before starting preparatory work. The aim, of preparing a substrate for coating applications, is to roughen the surface, remove weak layers, contaminants, dirt, debris and present a solid, clean, dry substrate for the primer. If unsure as to the level of preparation needed contact Polymer Nation at techservice@polymernation.com
Product Details
Name
F-52 TD
Category
Kit Yield in Gallons
N/A
N/A
Number of Mixes Per Kit
1, 50

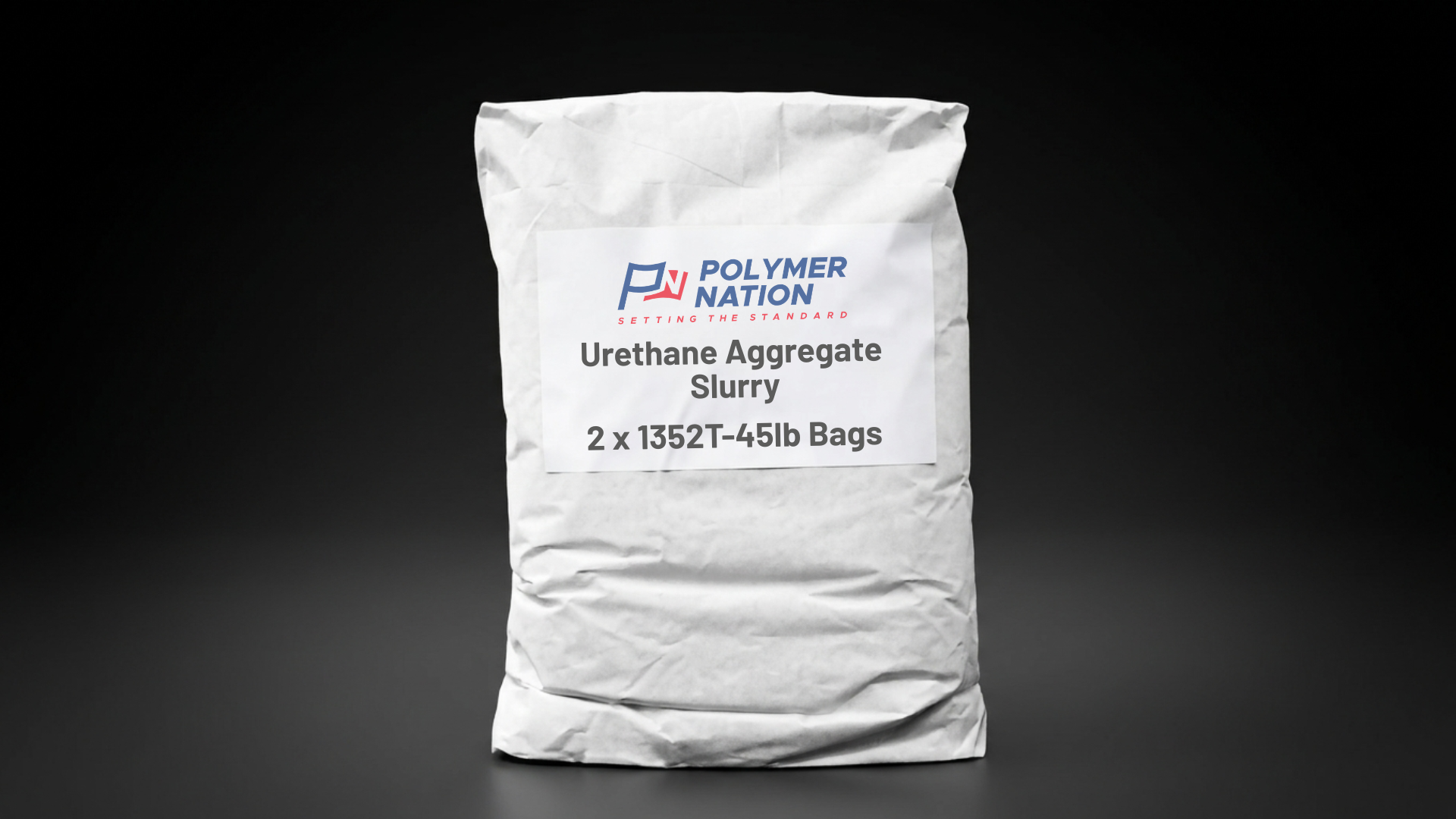

A 1 mix kit consists of 1 gal A, 1 gal B and 2-45 LB. bags of C. A 50 mix kit consists of 50 gal A, 50 gal B, 100-45 LB. bags C
Number of Components
3
N/A
Mix Ratio Liquids by Volume
1:1 see Mixing & Installation
Accuracy when mixing kits from bulk containers is critical. For mix ratio by weight contact Lab@polymerNation.com.
Ideal Application Temperatures
40F-80F
N/A
Mixed Viscosity in cP@25C/77F
300 A & B
Warmer temperatures will reduce viscosity and lower temperatures will increase viscosity
Gel Time
N/A
Warmer temperatures will decrease gel time and lower temperatures will increase gel time
Dry to Touch
2 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Through Dry
3 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Dry to Walk
4 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Dry to Lightly Use
24 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Full Cure
7 Days
Warmer temperatures will reduce time and colder temperatures will increase time
Shore Hardness at 24 Hours
D70
Warmer temperatures will increase hardness
Shore Hardness at 7 Days
D78
Warmer temperatures will shorten time to reach full hardness
Gloss @ 60 Degree Angle
30-40
N/A
VOC’s of Mixed Material
<50g/L
EPA Method 24
Color Scale per ASTM D1500
N/A
Milky appearance when mixed before colorants are introduced
Solids by Volume Mixed
95%
N/A
Storage
60F-90F
Store material between 60-90 degrees F in a protected dry location.
Odor
Subtle
N/A
Application Thickness in Mils
N/A
N/A
Coverage Per Mix
Each mix will cover 54 sq. ft. at 1/4″ theoretical coverage. A waste factor of 10-15% should be contemplated
Disposal
Dispose of material, containers, solvents, etc.per Federal, State and local guideline, rules and laws
N/A
Available Colors
Natural, Tile Red, Medium Gray, Black
N/A
Mixing & Installation
A mixture consists of 1 gal A, 1 gal B and 90 LB. of C (PN 1352 T). Combine part A and B into a single container, large enough to accept the entire kit (1 mix equals 8.53 gallons when Part C is added). Premix liquids at 350 RPM for 1 minutes using an appropriate mixing blade or mixing machine. Pour Part C into the mixed resin and continue mixing until a homogenous mortar is achieved (2-3 minutes usually). Pour the entire content from the container onto the floor and follow normal trowel of rake and finish techniques. Recoat within 24 hours. Clean tools with a solvent similar to Xylene or Acetone.
Other Product Names
Polymer Nation believes the information contained herein to be true and accurate. Information contained herein is for evaluation purposes only.
