SP-20 Flexible Urethane Membrane
.jpg)
About the product
Product Overview
SP-20 is a flexible aromatic urethane that has extreme tensile strength with an A shore hardness of 75. It is easy to install, has little odor and has elongation of over 1000%. It far outperforms epoxy membranes in crack-bridging and as a waterproofing membranes under Polymer Nation floor systems.
Uses

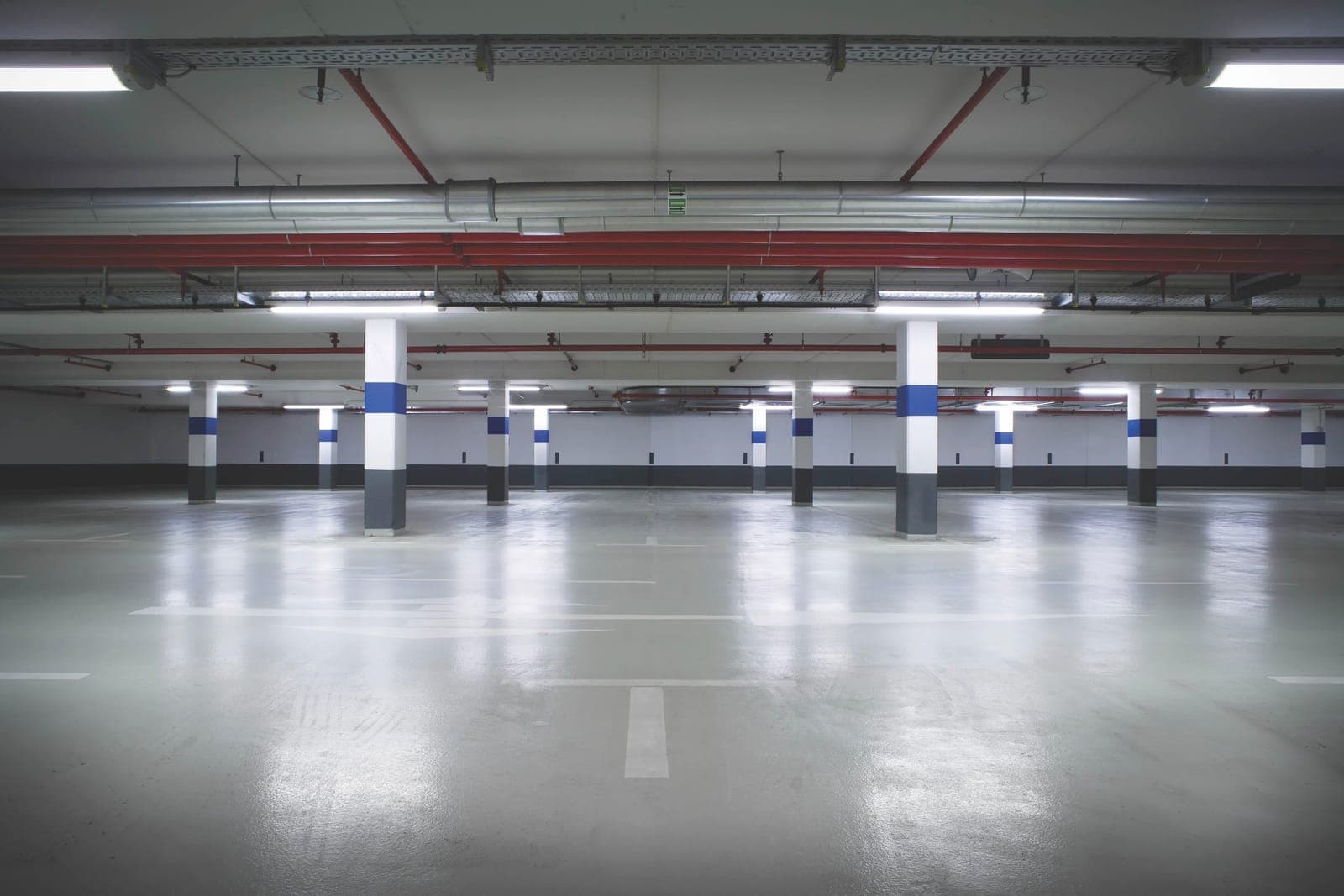

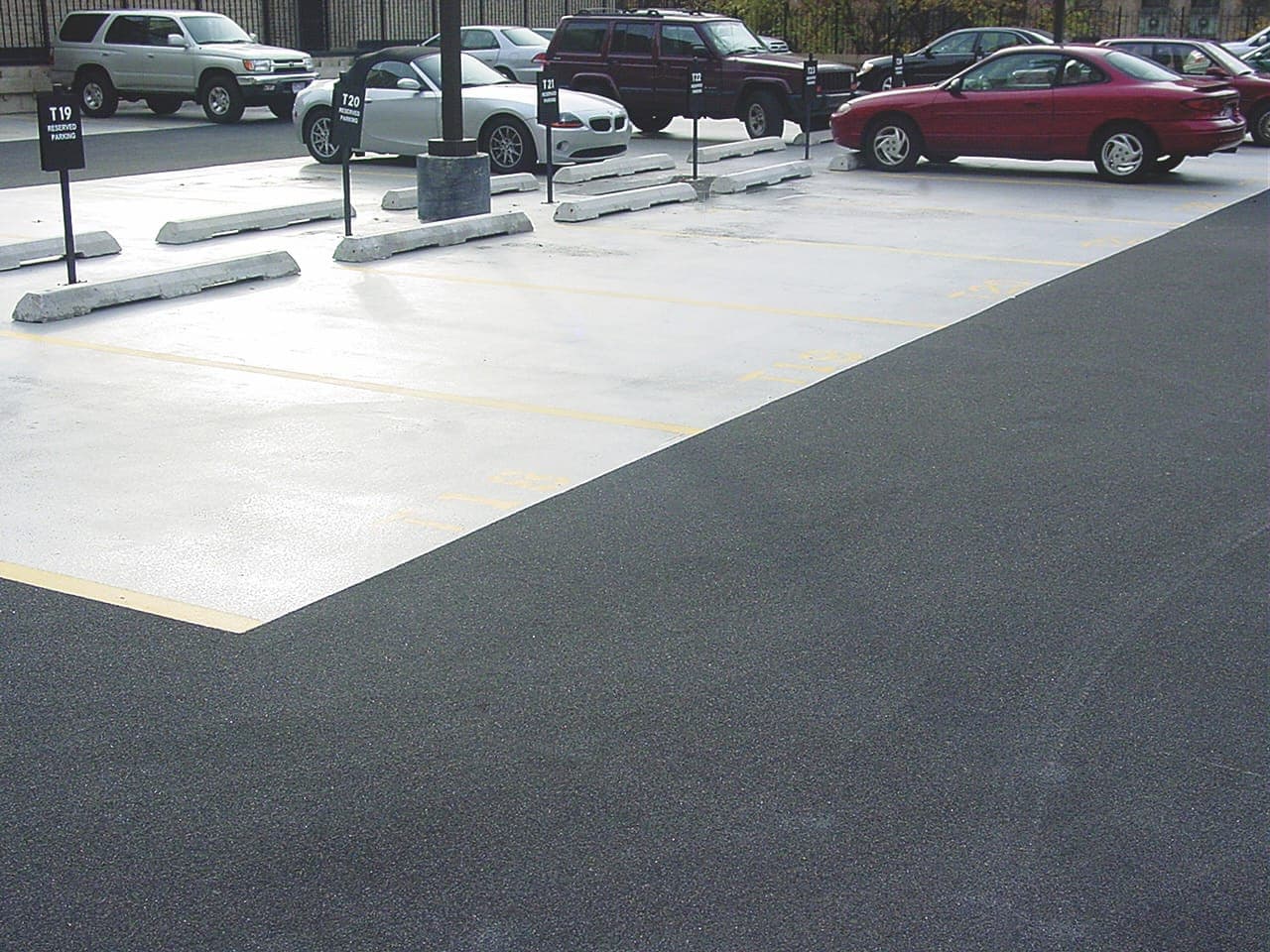

SP-20 is primarily used as a membrane in parking decks and waterproofing applications. It can also be used as a flexible broadcast resin, as a binder in flexible floor applications and bulked up using fumed silica to make a flexible patching paste.
Preparation
The coating installer should fully read and understand ICRI310.2R-2013 and OSHA 29 CFR 1926.1153 before starting preparatory work. The aim, of preparing a substrate for coating applications, is to roughen the surface, remove weak layers, contaminants, dirt, debris and present a solid, clean, dry substrate for the primer. If unsure as to the level of preparation needed contact Polymer Nation at techservice@polymernation.com
Product Details
Name
SP-20
Category
Kit Yield in Gallons
5
A 1 mix kA 1 mix kit consists of 4.30 gal A and .70 gal B
Number of Mixes Per Kit
N/A
Number of Components
2
Mix Ratio Liquids by Volume
Not Provided
Do not split kits.
Ideal Application Temperatures
60F-90F
Verify that substrate temperature is above 5 degrees of dewpoint during application and cure of material to avoid a potential amine blush
Mixed Viscosity in cP@25C/77F
2000
Warmer temperatures will reduce viscosity and lower temperatures will increase viscosity
Gel Time
23 min.
Warmer temperatures will decrease gel time and lower temperatures will increase gel time
Dry to Touch
2.5 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Through Dry
4 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Dry to Walk
8 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Dry to Lightly Use
12 Hours
Warmer temperatures will reduce time and colder temperatures will increase time
Full Cure
7 Days
Warmer temperatures will reduce time and colder temperatures will increase time
Shore Hardness at 24 Hours
A 40
Warmer temperatures will increase hardness
Shore Hardness at 7 Days
A 75
Warmer temperatures will shorten time to reach full hardness
Gloss @ 60 Degree Angle
75-80
Applying material close to dew point will decrease gloss and may result in an amine blush
VOC’s of Mixed Material
<8 g/L
EPA Method 24
Color Scale per ASTM D1500
N/A
Solids by Volume Mixed
100%
Storage
60F-90F
Store material between 60-90 degrees F in a protected dry location.
Odor
Very Subtle
Application Thickness in Mils
As an unfilled membrane 20-30
Coverage Per Mix
N/A
Disposal
Dispose of material, containers, solvents, etc.per Federal, State and local guideline, rules and laws
Available Colors
Light Gray
Mixing & Installation
Combine all of part A and B into a single container, large enough to accept the entire kit. Mix at 350 RPM for 2-3 minutes using an appropriate mixing blade and making sure not to introduce excessive air into the solution. Pour the entire content from the container onto the floor and follow normal squeegee and back roll or cut and roller techniques. Recoat within 24 hours. Clean tools with a solvent similar to Xylene or Acetone. When a thicker membrane is desired, mix PN 1620 S with a full kit. This mix will cover 160 square feet at 60 mils and spread evenly up to 200 mils.
Other Product Names
Polymer Nation believes the information contained herein to be true and accurate. Information contained herein is for evaluation purposes only.
